Wireless Purification System (WPS)
Our Wireless Purification System (WPS) is a complex circuit that reduces power line noise without audible or measured side-effects.
This is important because other solutions while attempting to curb noise, also hamper dynamics.
Over-voltage Surge Protection (OSP)
The Over-voltage Surge Protection (OSP) is an auto detection and cut-off circuit.
Should it detect an excessive power surge or short in the mains electricity it will automatically cut off. If this issue persists, it will not reboot and will protect your equipment from harm.
It is effective to max. 30,000A @ 1,000V/10uS.

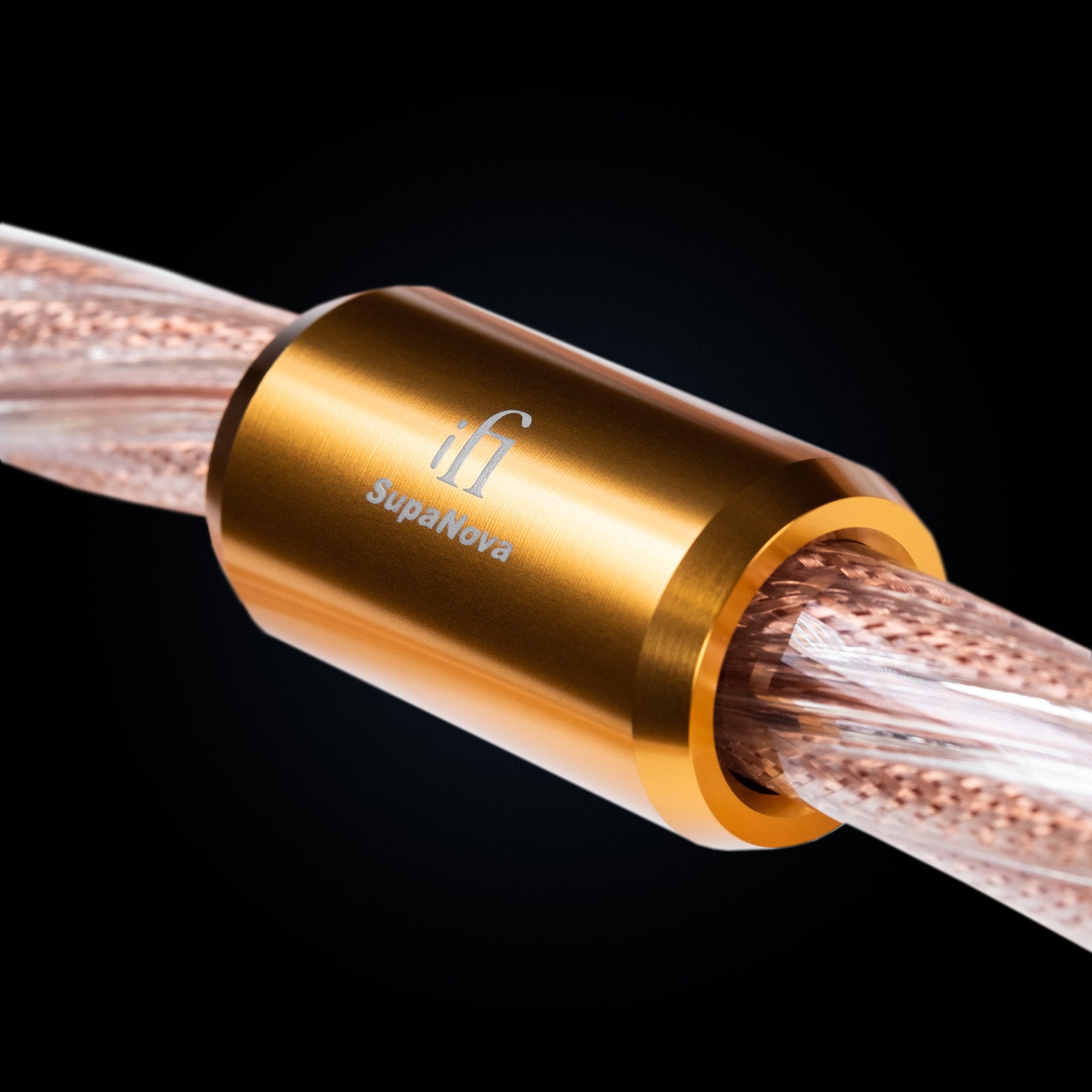

Ground Zero
OurGround Zero design ensures the grounding conductor within the cable is unaffected by residual magnetism and unwanted induced voltage.
Ground Zero
The SupaNova incorporates five conductors, each made from heavy-gauge, continuous-cast OFHC (Oxygen-Free High Thermal Conductivity) copper, arranged in a geometrically balanced configuration. Two pairs of live and neutral conductors are arranged either side of the earth conductor, which is positioned at the centre of the cable. The ground conductor is arranged in a shotgun configuration and not twisted around like other mains cables. The live and neutral conductors are arranged in a truly balanced configuration, hence their magnetic fields cancel each other out perfectly. As a result, there is no residual magnetic field being applied to the centre-ground conductor, and no unwanted induced voltage on the Ground conductor – we call this design Ground Zero.
Power conditioning

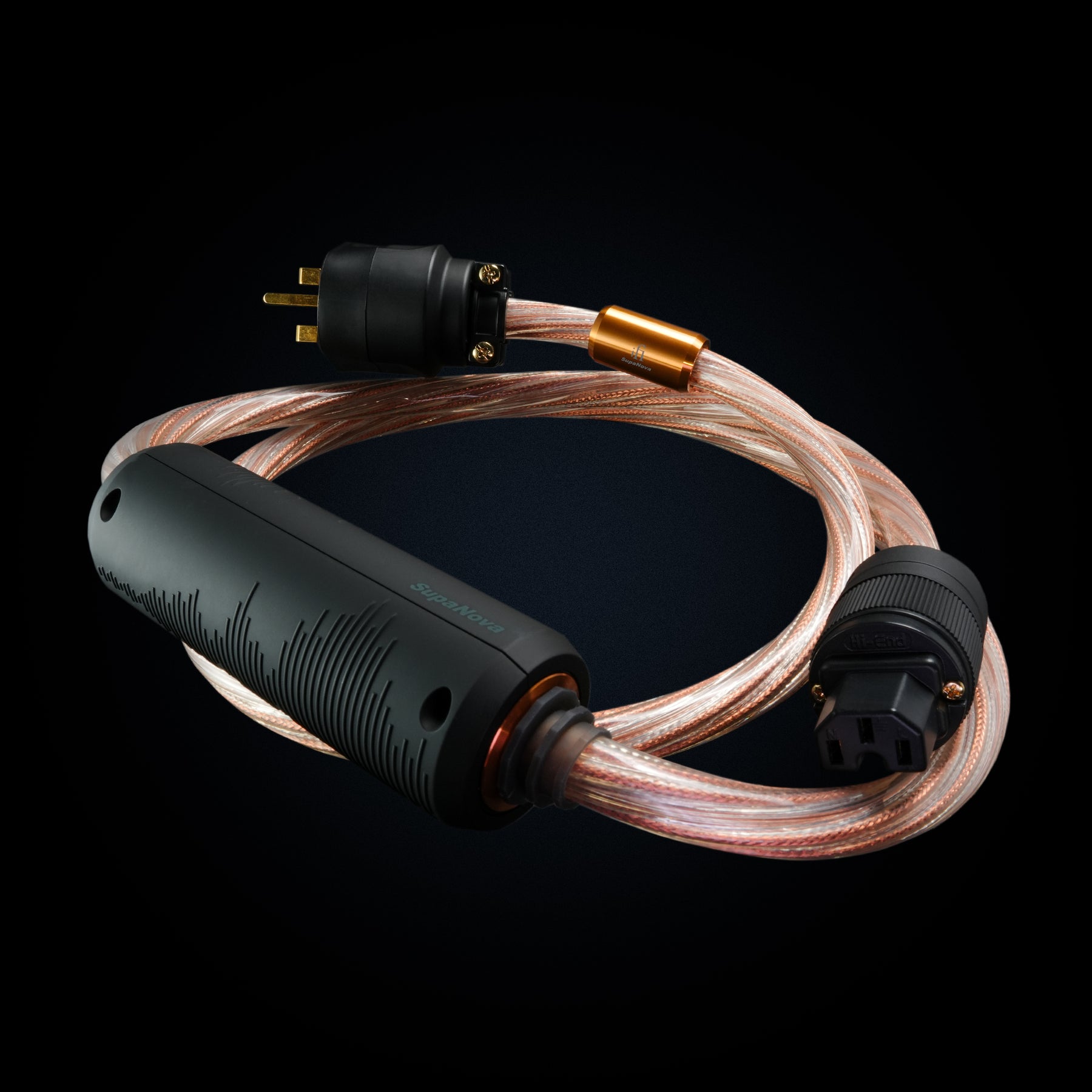

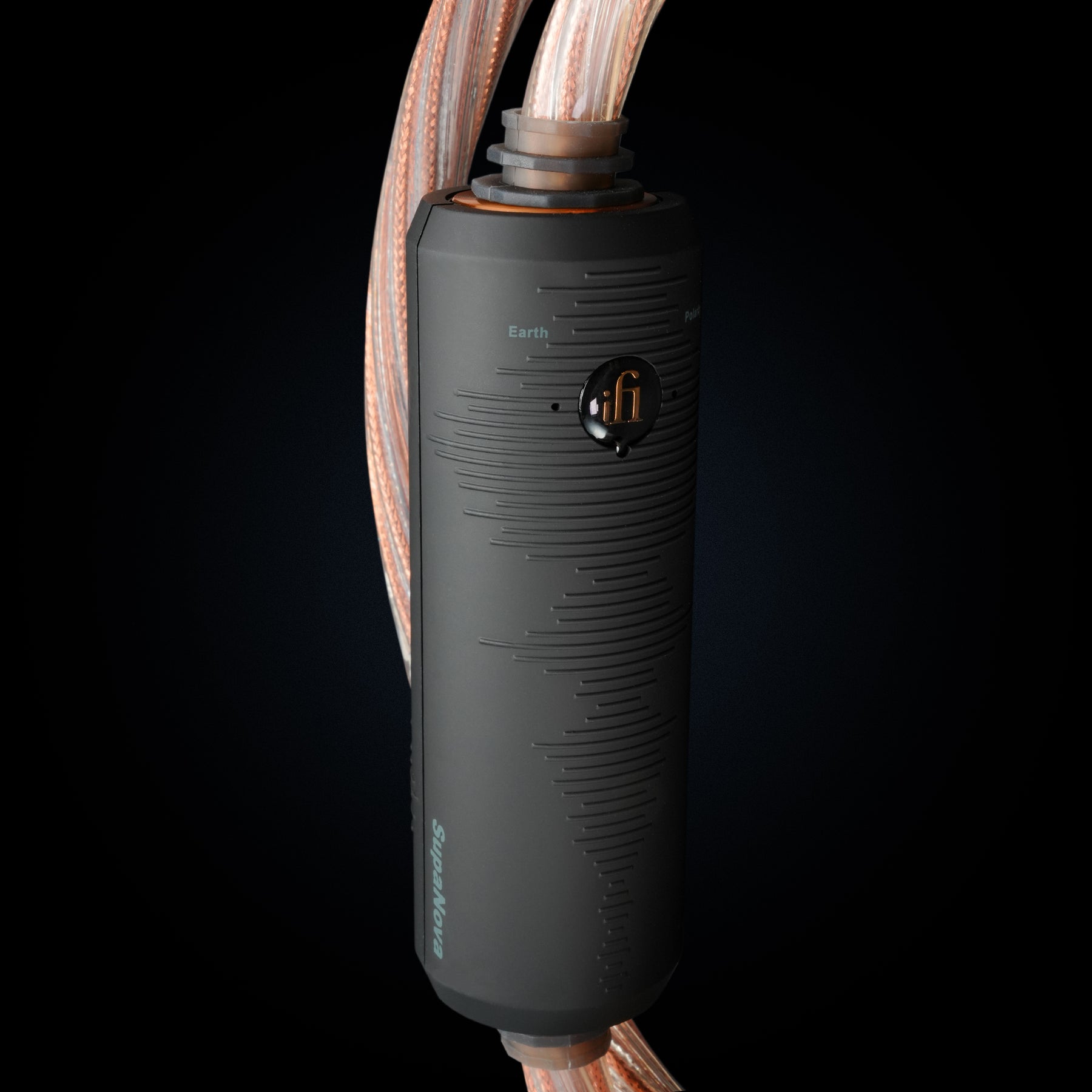

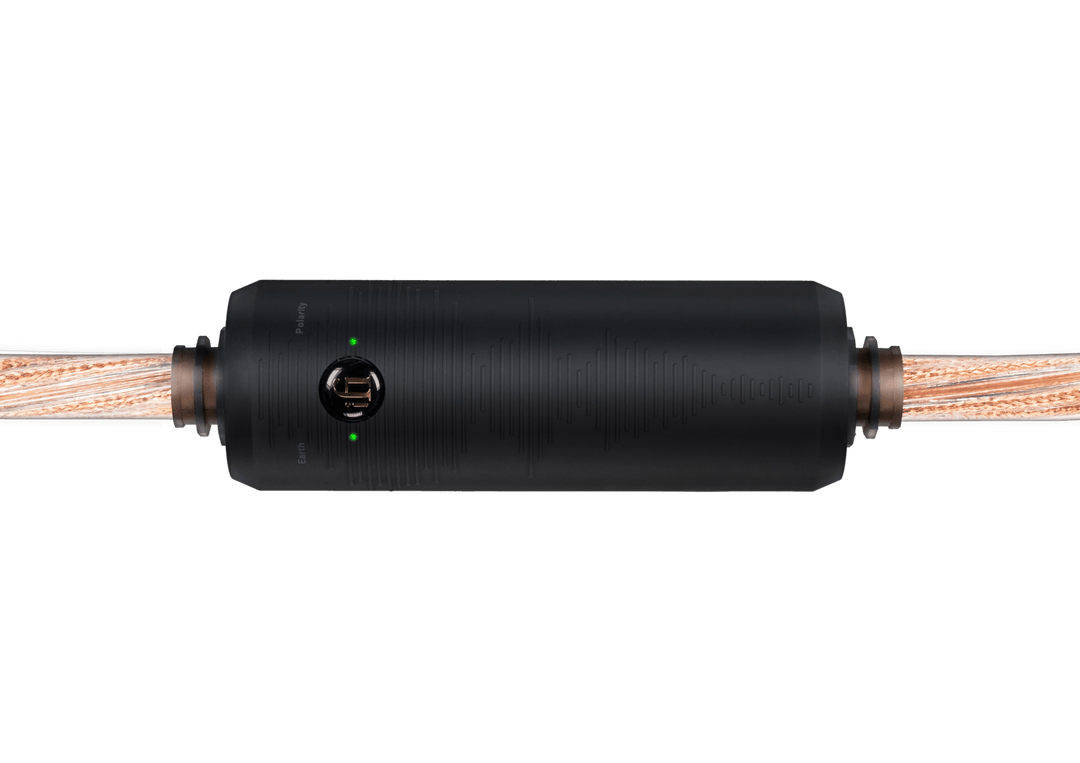

The SupaNova takes the Nova and adds a cylindrical housing partway down its length. This contains our proprietary Active Noise Cancellation II technology. ANC II actively eliminates far more noise across the frequency range than a passive product, even across the lower frequencies. We use inverse noise current to cancel out the noise in the mains signal. The way this works is comparable to the technology in noise-cancelling headphones.
Tech Specs
Noise reduction
> 40dB (> 100x)
Surge Protection
max. 10,000A @ 775V / 8/20uS
Under operating voltage
Maximum operating rating 10A at 250Vac and 15A at 125Vac
Length
1.8 m (70.8")
Weight
US: 675 g (1.49 Ibs)
EU: 690 g (1.52 Ibs)
UK: 695 g (1.53 Ibs)
AU: 673 g (1.48 Ibs)
Warranty period
12 months

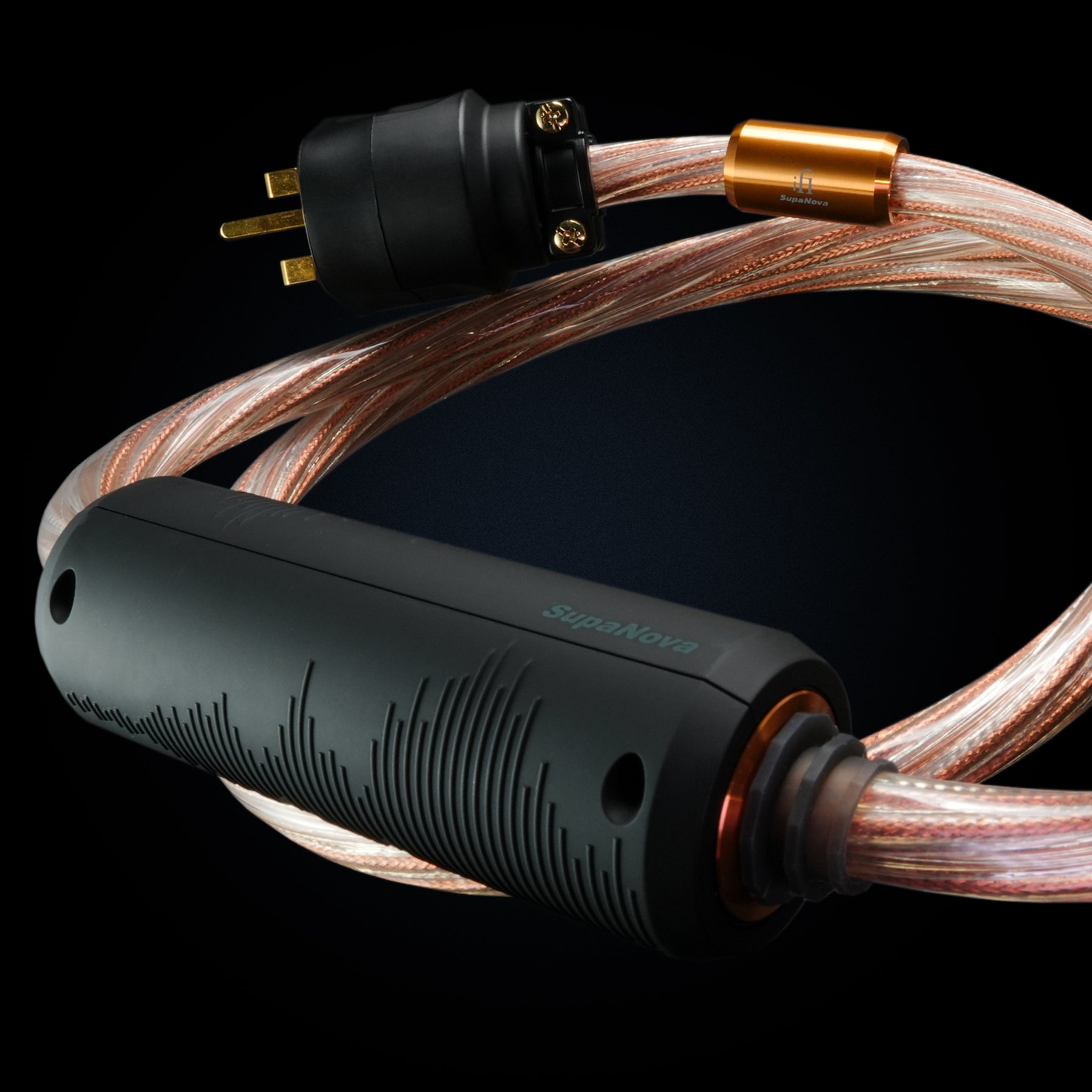

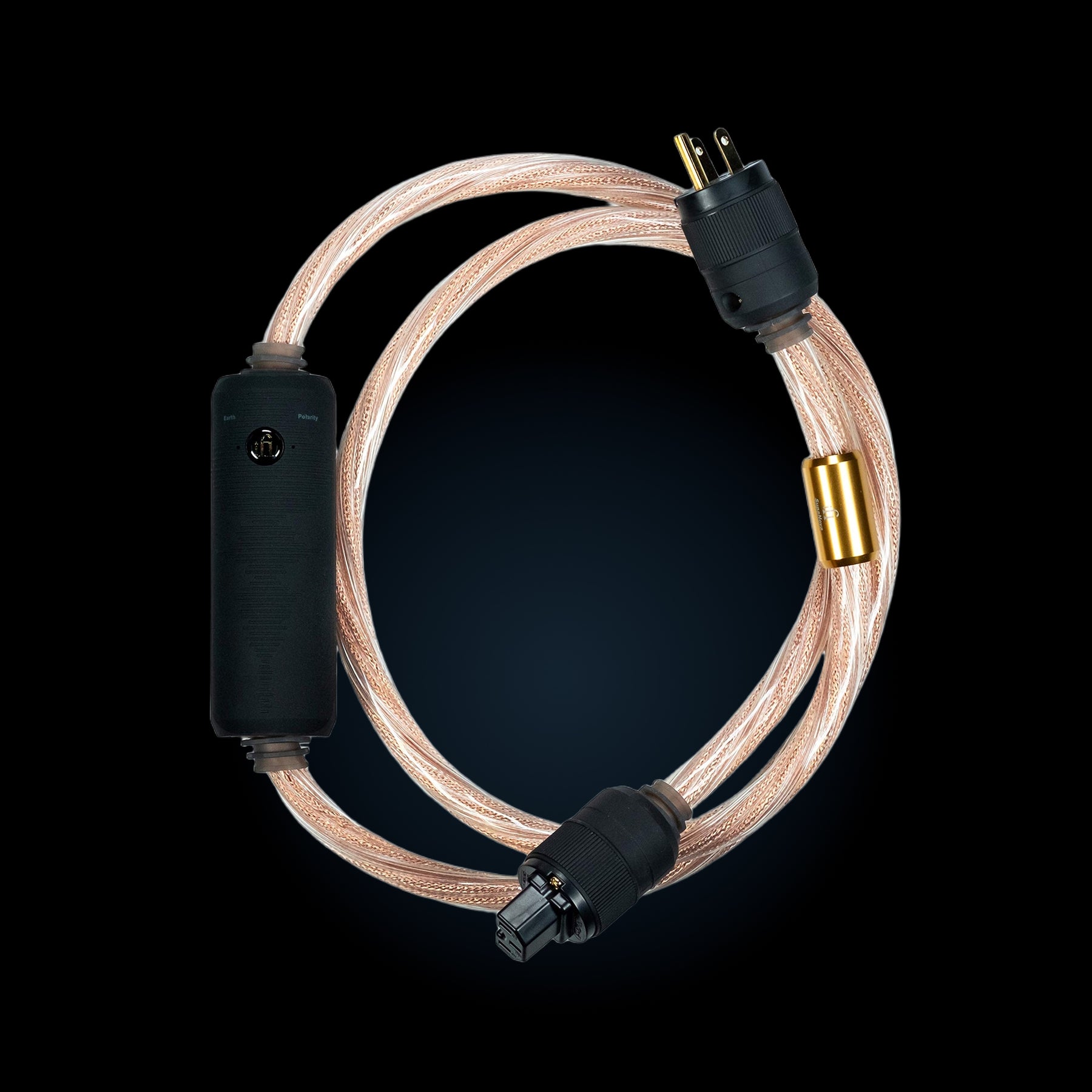

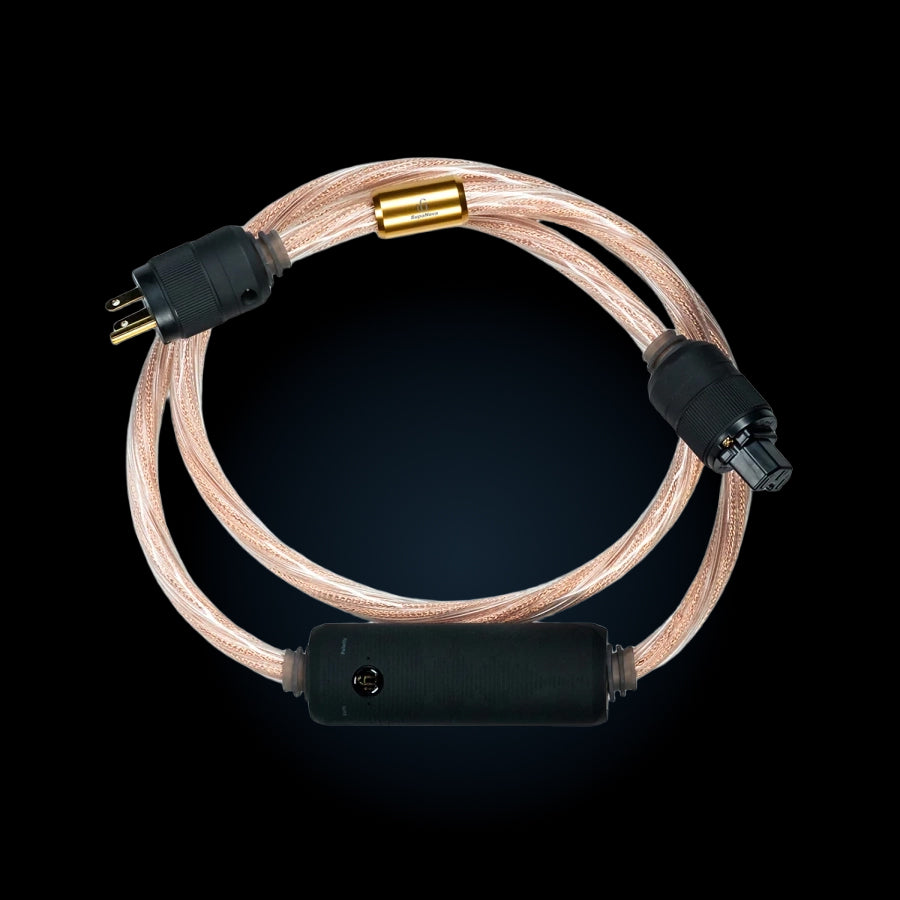

SupaNova

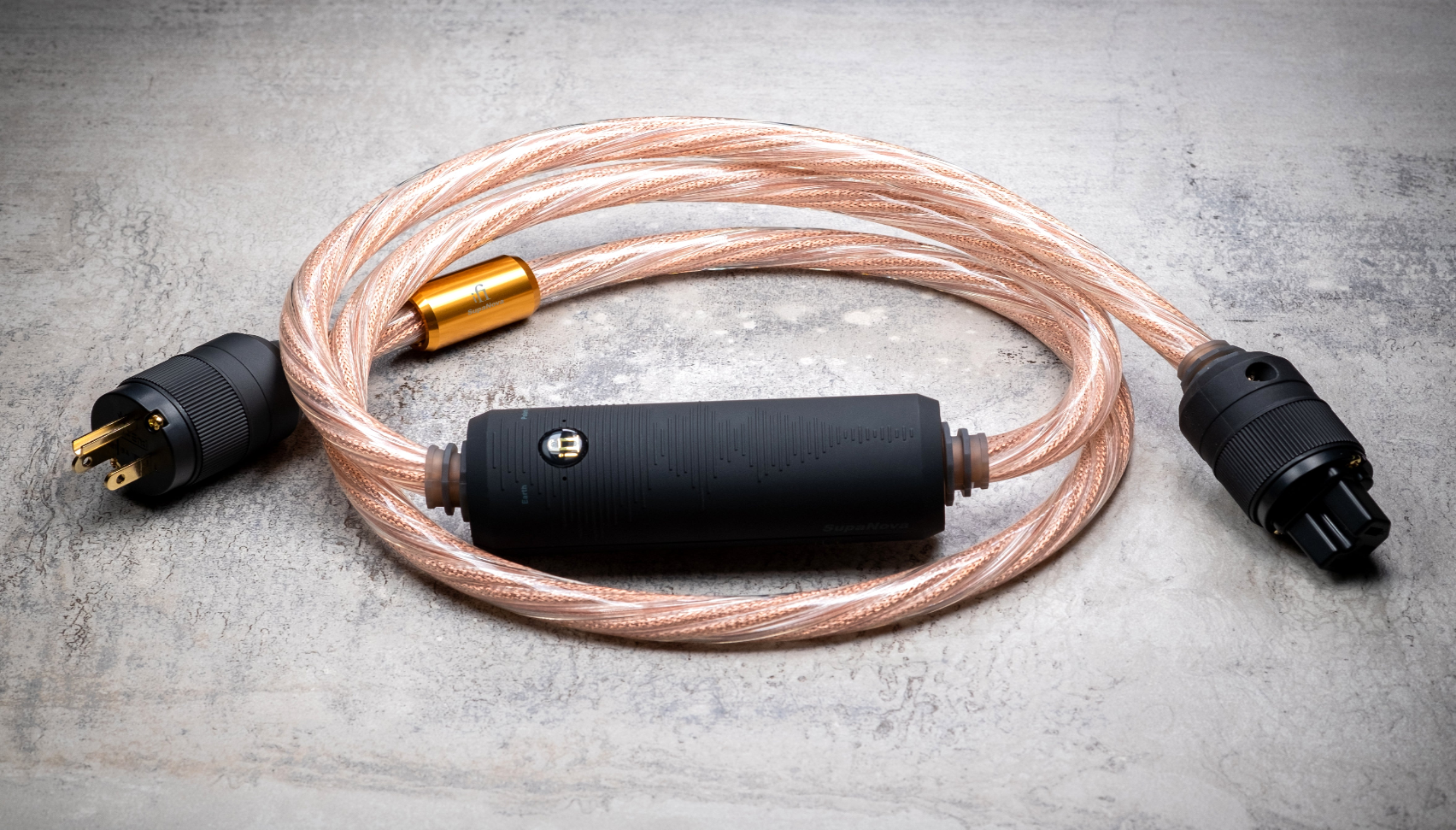

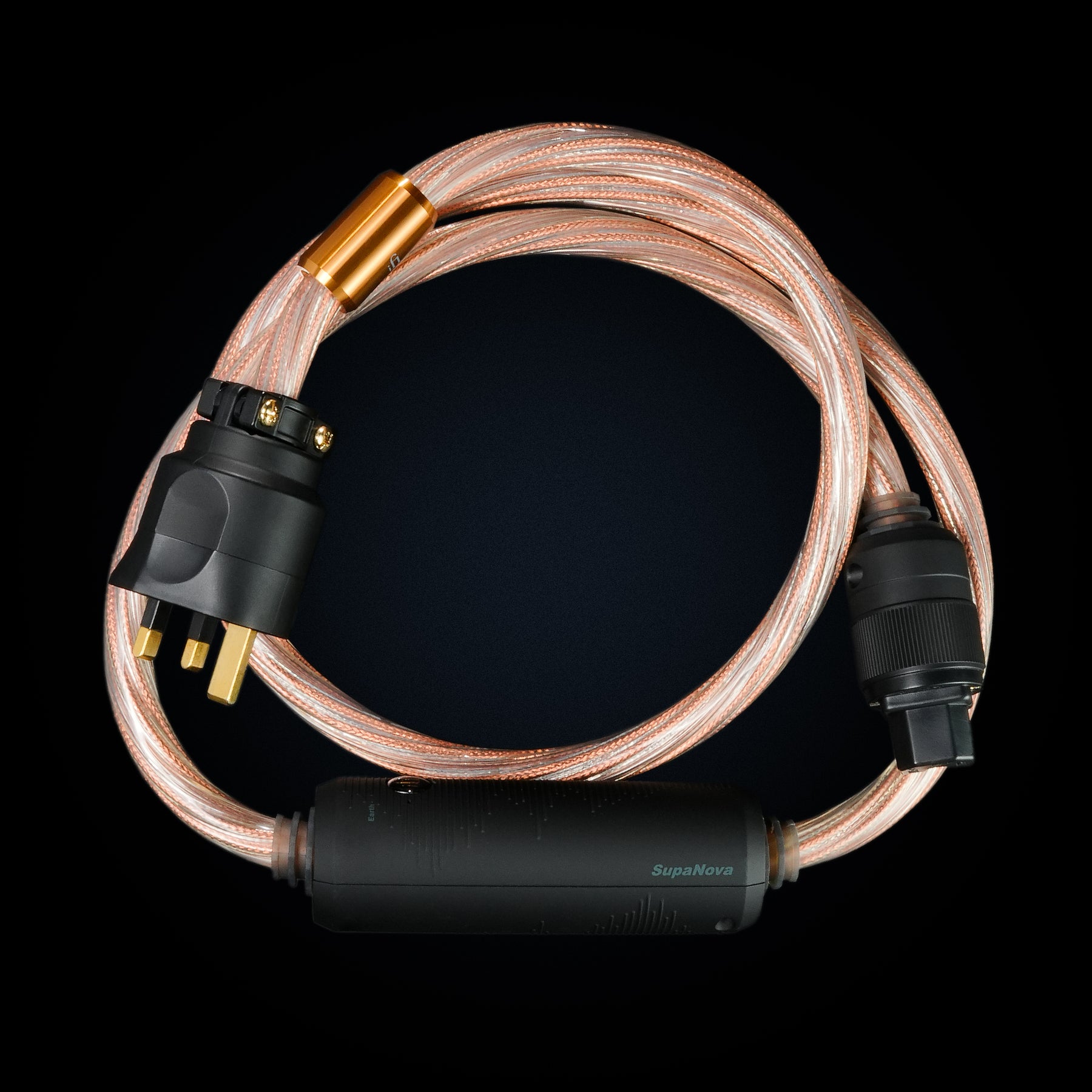

The SupaNova IEC power cable supplies your high-end system with ANC treated power and superior EMI/RFI protection. Built-in over-voltage surge protection ensures you protect your investment.
